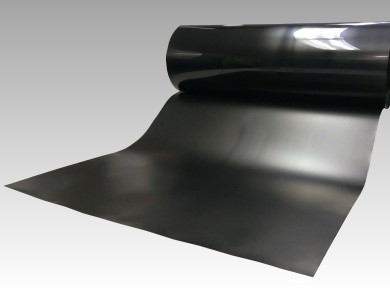

MICROME™ is a conductive sheet made by kneading carbon black into resin.
As a conductive sheet which protects electrical and electronic components from static electricity problems,

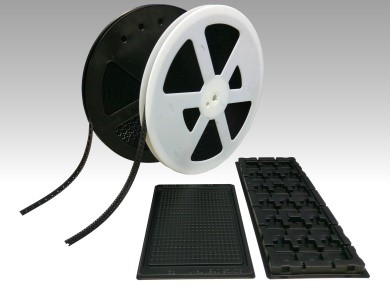

it is used in carrier tapes and trays (packaging materials for transport) and a wide range of components from ICs (semiconductor products) to capacitors and connectors.
| Sheet configuration | PS | K | GS | SF | PP | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Surface | Conductive PS | Conductive PS | Conductive PS | Conductive PS | Conductive PS | |||||
| Central layer | PS resin | ABS resin | ABS resin | PS resin | PP resin | |||||
| Surface | Conductive PS | Conductive PS | Conductive PS | Conductive PS | Conductive PS | |||||
| Product name | Reference number in gazetted list in Japan | Fire service act | General properties | Application | Other | Characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Functional group and compound classification | CAS RN | Chemical formula | Molecular weight | Appearance | Melting point (°C) | Boiling point (°C) | Specific gravity | Flash point (°C) | Ignition point (°C) | ||||||
| MICROME PS | Exists | N/A | Compound | 9003-55-8 | Confidential | Confidential | Roll | 130-160 | No data | 1.06-1.10 | 400-550 | No data | Carrier tapes, electronic component trays | PS conductive surface resistance: 1x106 Ω and below | Thickness: 0.2-2.0 mm Standard width: 640 mm Characteristic conductive stability, |
| MICROME NPS | Exists | N/A | Compound | 9003-55-8 | Confidential | Confidential | Roll | 130-160 | No data | 1.06-1.10 | 400-550 | No data | Carrier tapes, electronic component trays | PS conductive surface resistance: 1x106 Ω and below | Thickness: 0.2-0.5 mm Standard width: 640 mm Characteristic conductive stability, |
| MICROME K | Exists | N/A | Compound | 9003-56-9 | Confidential | Confidential | Roll | 130-160 | No data | 1.06-1.10 | 400-550 | No data | Carrier tapes | ABS conductive surface resistance: 1x106 Ω and below | Thickness: 0.2-0.5 mm Standard width: 640 mm Characteristic conductive stability, |
| MICROME GS | Exists | N/A | Compound | 9003-56-9 | Confidential | Confidential | Roll | 130-160 | No data | 1.06-1.10 | 400-550 | No data | Carrier tapes | ABS conductive surface resistance: 1x106 Ω and below | Thickness: 0.2-0.5 mm Standard width: 640 mm Characteristic conductive stability, |
| MICROME SF | Exists | N/A | Compound | 9003-55-6 | Confidential | Confidential | Roll | 130-160 | No data | 1.06-1.10 | 400-550 | No data | Electronic component trays | PP conductive surface resistance: 1x106 Ω and below | Thickness: 0.3-1.5 mm Standard width: 640 mm Characteristic conductive stability, |
The above figures are representative measured values obtained under specific conditions using our test methods and are not guaranteed.

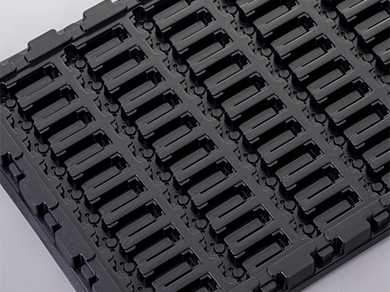

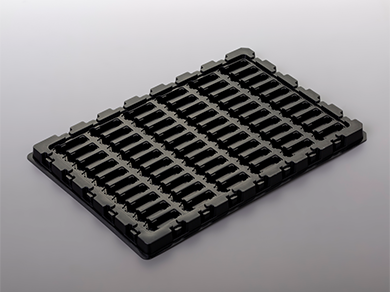

MICROME™ is widely used in packaging materials such as carrier tapes, trays, semiconductors, and electronic and precision parts which are negatively affected by static electricity.
